GC Sampling & Switching Rotary Valves | MRV10-16R2-0006-00
MRV
High Efficiency 10-Port GC Rotary Valve, Dursan® Coated
Regular price
$1,125.00 CAD
Regular price
Sale price
$1,125.00 CAD
Unit price
per
Couldn't load pickup availability

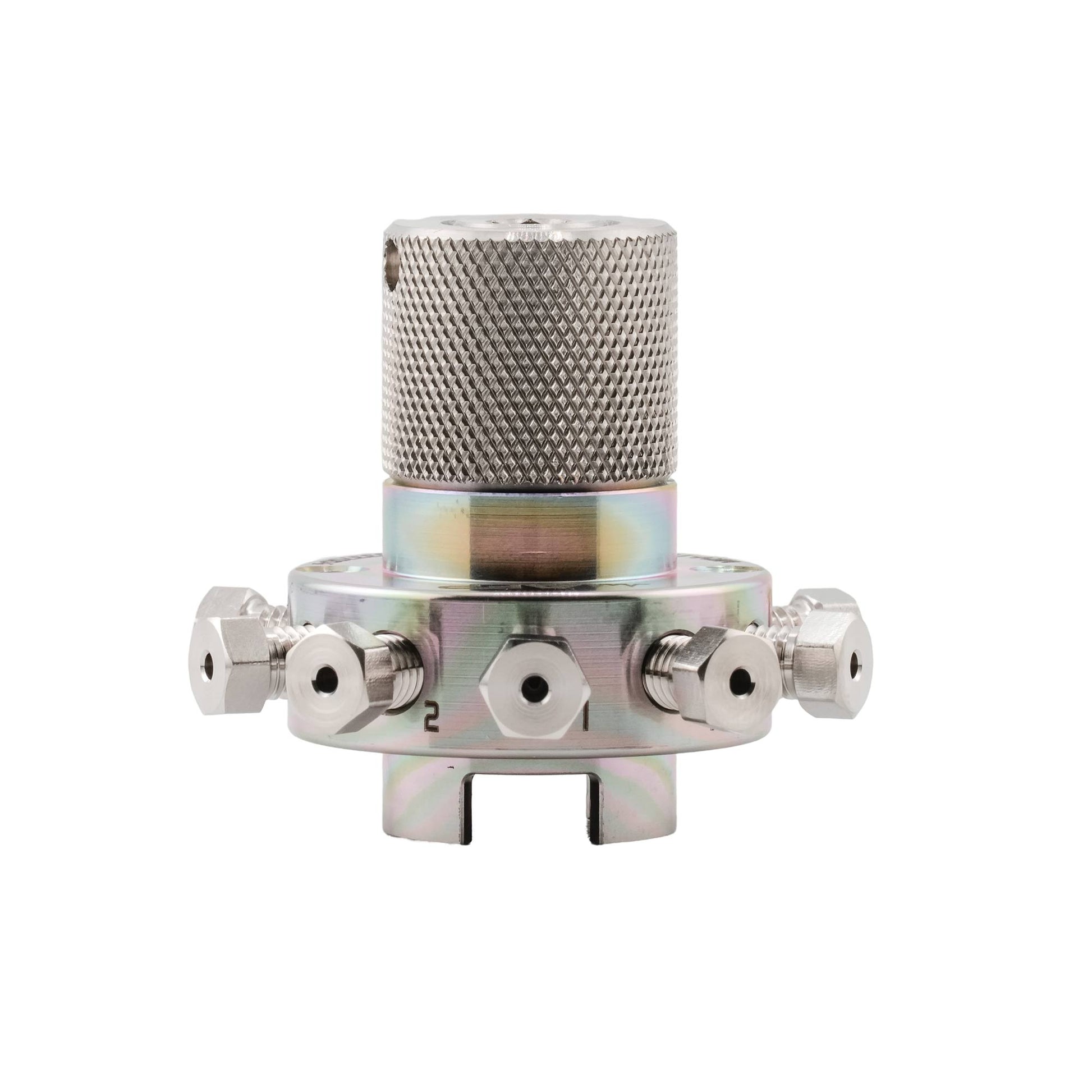

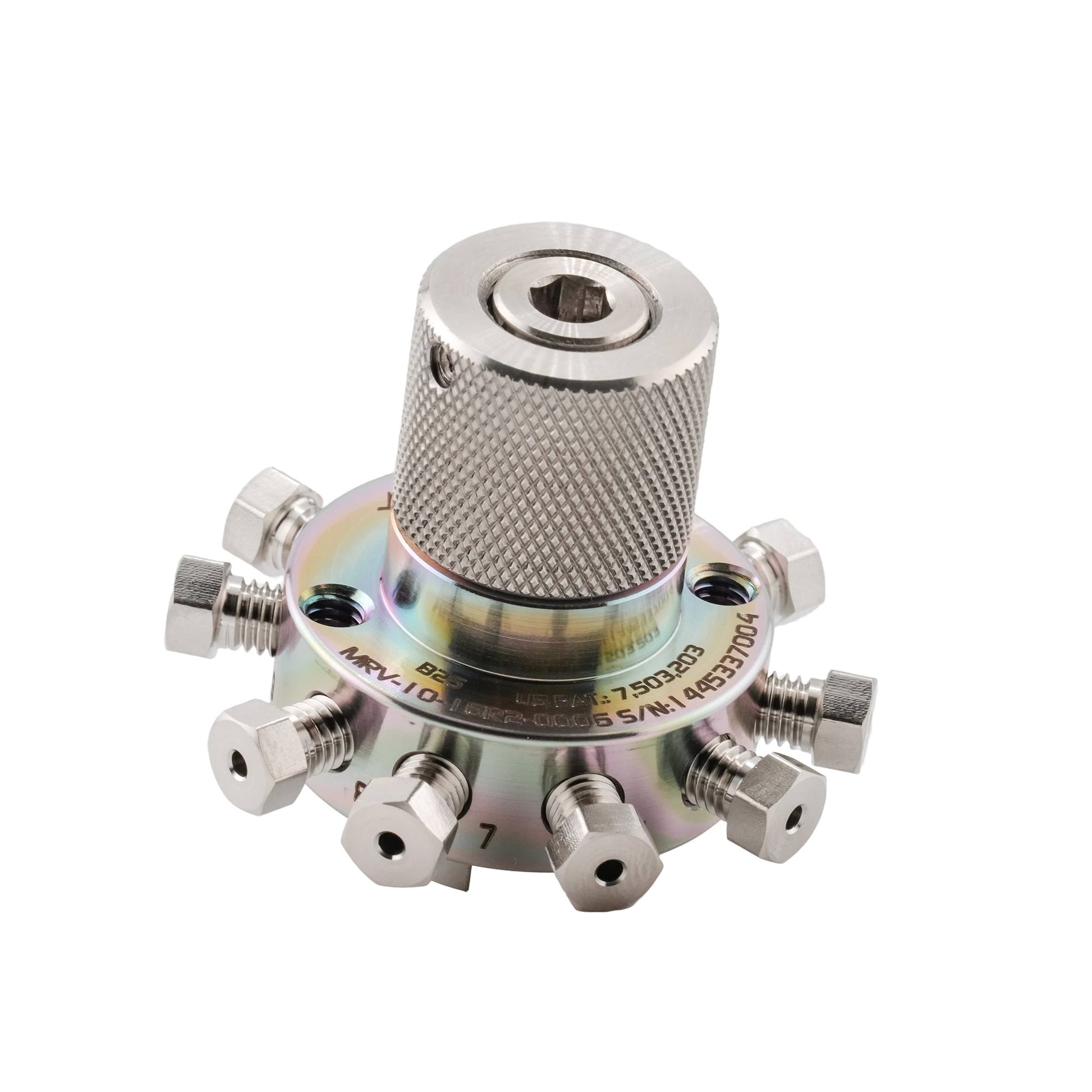

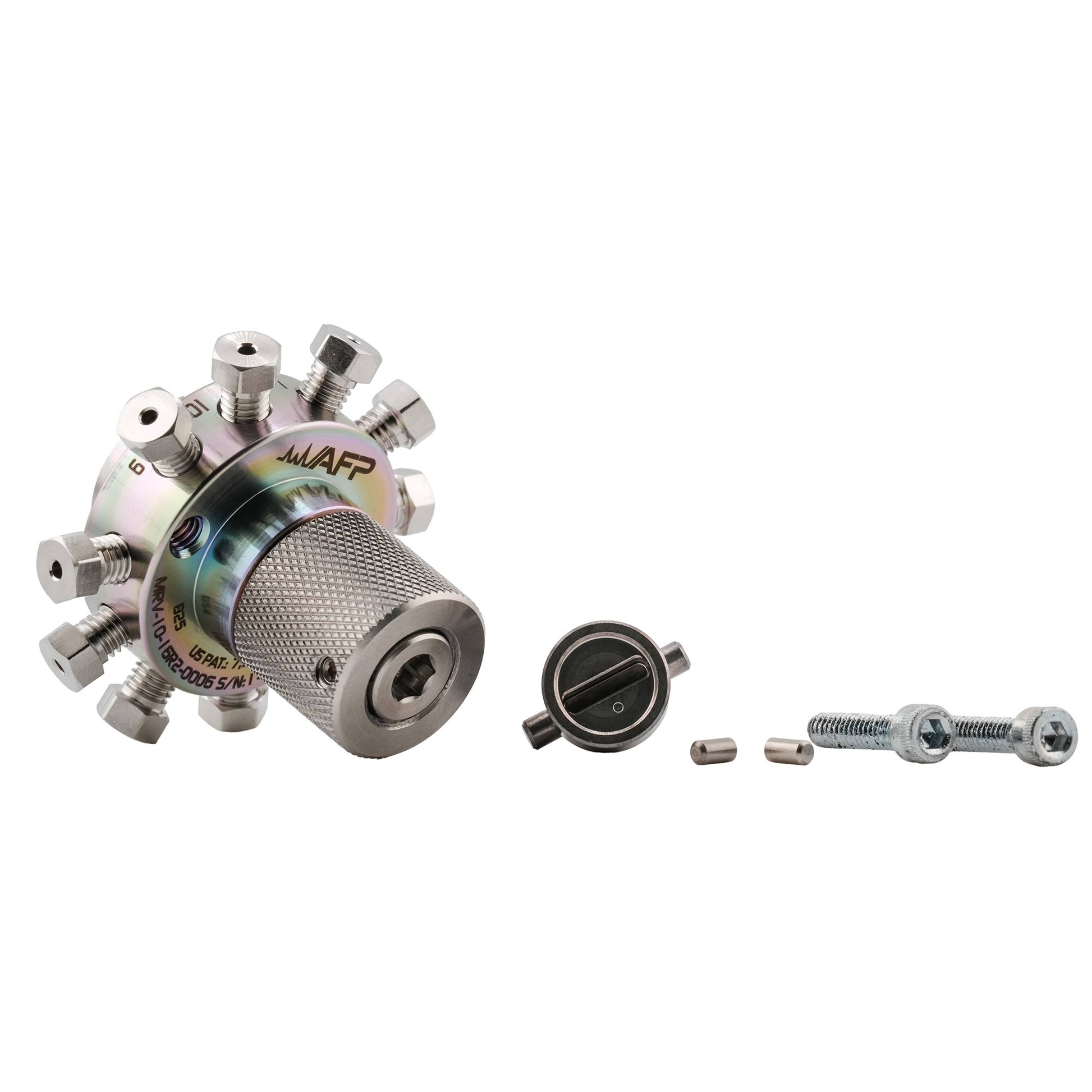

Engineered for maximum efficiency, this Sampling & Switching Gas Chromatography Rotary Valve is built with Nitronic 60 to resist wear and galling. It is also coated with Dursan®, a functionalized amorphous silicon oxide layer, which improves durability, reliability and accuracy in harsh chemical environments. This valve is certified leak tight up to 400 psi at 225°C, making it ideal for demanding applications in the Oil and Gas Industry as well as replacing costly Hastelloy Valves for H2S Applications.
Key Features:
- Ports: 10
- Temperature: 225°C
- Pressure: 400 psi
- Material: Nitronic 60
- Port Size: 0.025”
- Coating: Dursan®
- Purge: None
- Standoff: None
Benefits Include:
- High Durability: High performance alloy and coating increases lifespan of the rotary valve
- Increased Sensitivity: Maintain sample integrity thanks to the inert coating and sealing performance of the AFP rotary valve
- Higher Quality: Every valve is leak tested before shipping at no additional cost
- Increased Reliability: AFP’s double stopper design reduces maintenance and downtime
Downloadables
Dimensions & Weight
Length: 1.55 in [39.37 mm]
Width: 1.77 in [44.958 mm]
Height: 1.77 in [44.958 mm]
Width: 1.77 in [44.958 mm]
Height: 1.77 in [44.958 mm]
Specifications
Mounting Options: None
Material: Nitronic 60
Material: Nitronic 60
