GC Sampling & Switching Rotary Valves | MRV06-16R3-0001-4P
MRV

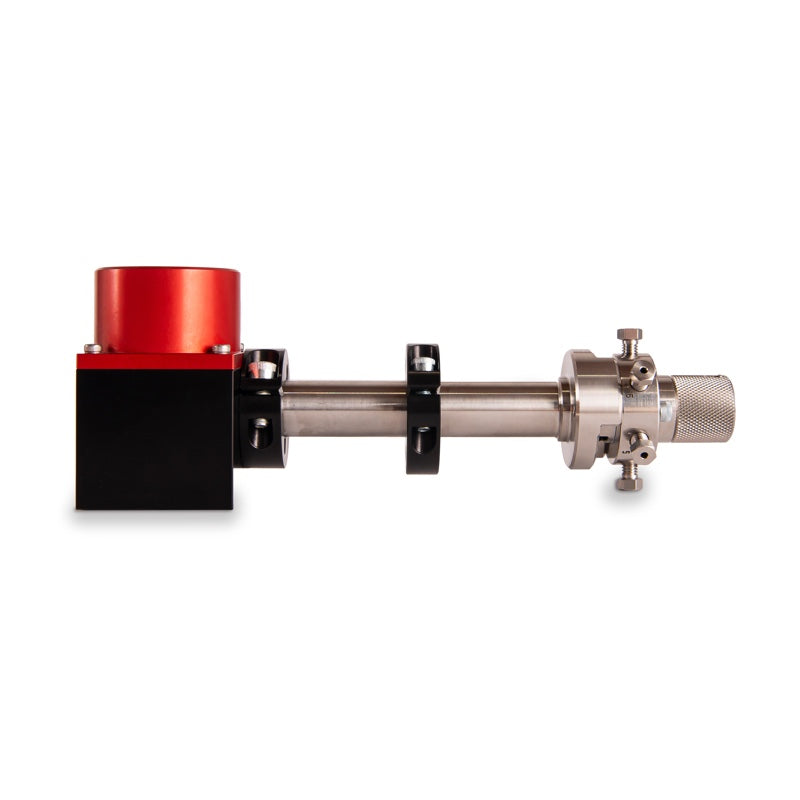

High Temperature 6-Port GC Rotary Valve with Pneumatic Actuation
Regular price
$1,411.00 CAD
Regular price
Sale price
$1,411.00 CAD
Unit price
per
Couldn't load pickup availability
The MRV-HT high performance rotary valve with pneumatic actuation extends your chromatography applications up to 350°C. The rotor (R3) in the MRV-HT is constructed with a PFAS-free high temperature polyimide/graphite composite. This rotary valve solves the common issues of current high temperature valves - sudden failures due to rotary stripping - while also eliminating complex reconditioning procedures.
Key Features:
- Ports: 6
- Temperature: 350°C
- Pressure: 325 psi
- Material: Nitronic 60
- Port Size: 0.025”
- Coating: None
- Purge: None
- Standoff: 4” Standoff with Pneumatic Actuator
The MRV-HT Advantages:
- Ideal for applications that require temperatures in the range of 225°C to 350C, with the optimal temperature being 330°C
- Allows for up to 50 actuation cycles at room temperature without damaging the rotor/sealing for instrument tuning and leak testing
- No reconditioning required to tune the system, which leads to faster installation times
- New preload design to ease maintenance operations
- Compatible with AFP pneumatic actuators and electrical actuator (MEA-I) in an assembly using a standoff
Downloadables
Dimensions & Weight
Length: 6.88 in [174.752 mm]
Width: 2.0 in [50.8 mm]
Height: 3.88 in [98.552 mm]
Width: 2.0 in [50.8 mm]
Height: 3.88 in [98.552 mm]
Specifications
Mounting Options: 4'' Standoff
Material: Nitronic 60
Material: Nitronic 60
