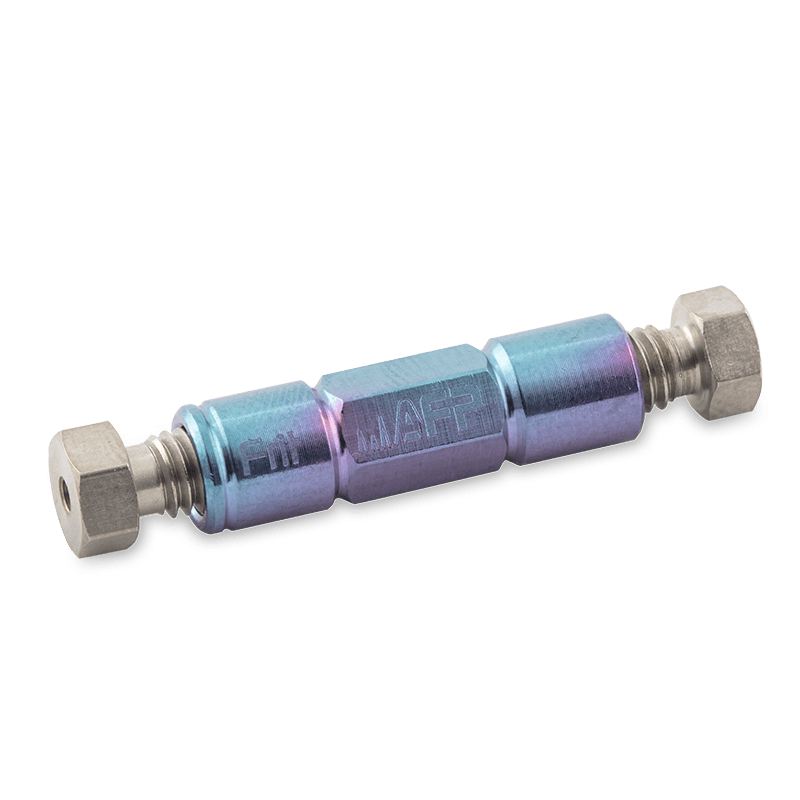

The Filtering Union Fitting is designed to be a leak free part of any gas chromatography system. This Fitting connects two pieces of tubing of the same O.D for a stronger connection and no dead volume. Engineered out of high quality SS-316L, the Filtering Union Fitting is designed with built-in filtration to prevent any damage or clogged valves and is a necessary part of a leak free, high performance gas chromatography instrument.

The addition of SilcoNert 2000® coating improves reliability, durability, and creates an inert flow path for increased analytical results. All SilcoNert 2000® coated unions, tees, and crosses come with gold plated unions to assure the inertness of the connection.

Key Features:

• Material: SS-316L
• Inlet (Left): 1/16”
• Outlet (Right): 1/16”
• Bore: 0.040”
• Frit: 10µm
• Coating: SilcoNert 2000®

Benefits Include:

• Joins two pieces of tubing of the same O.D for a stronger connection and lower volume
• Engineered from high quality SS-316L
• Works with any AFP system and are in spec for the gas chromatography market
• SilcoNert 2000® coated with gold plated unions for increased inertness of the connection
