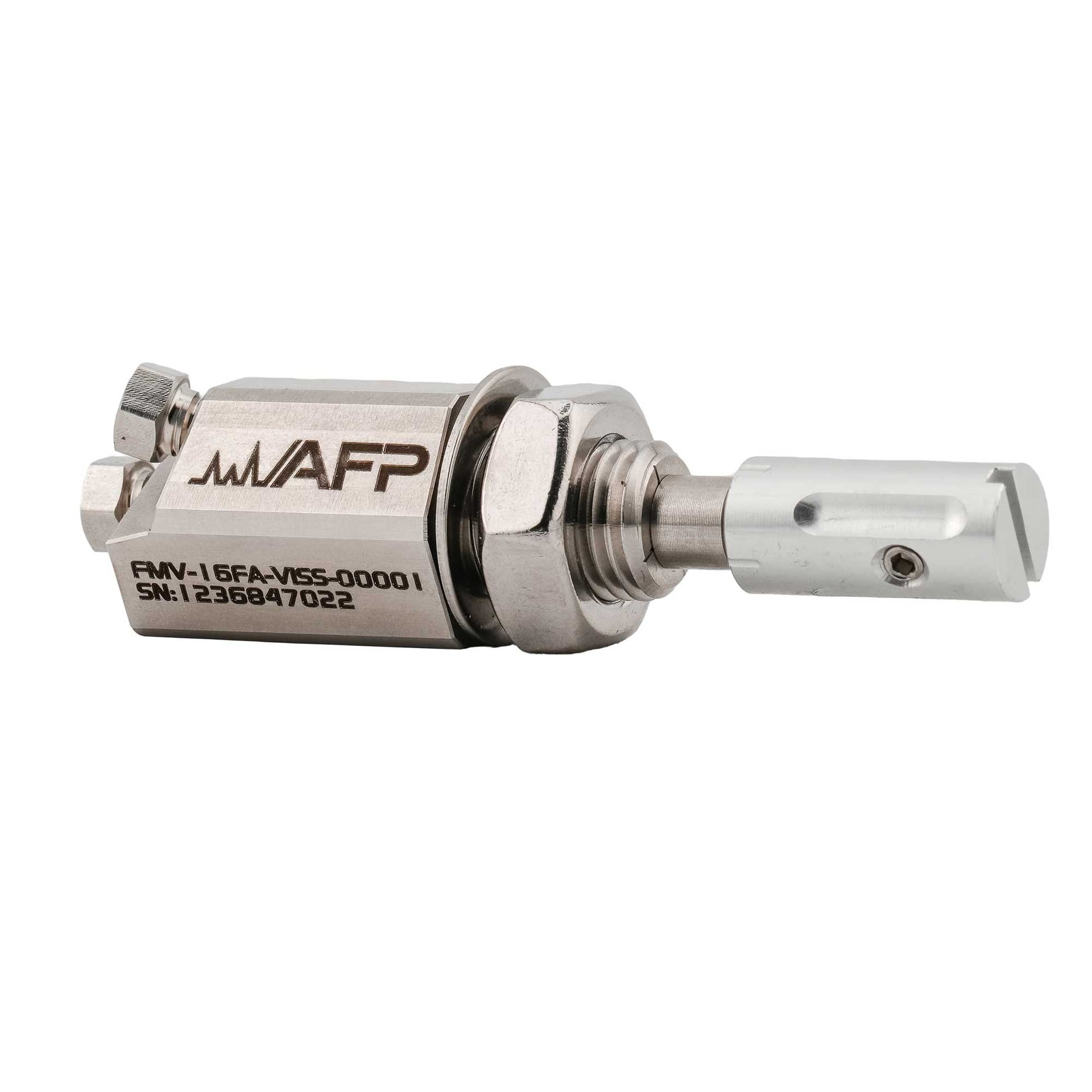

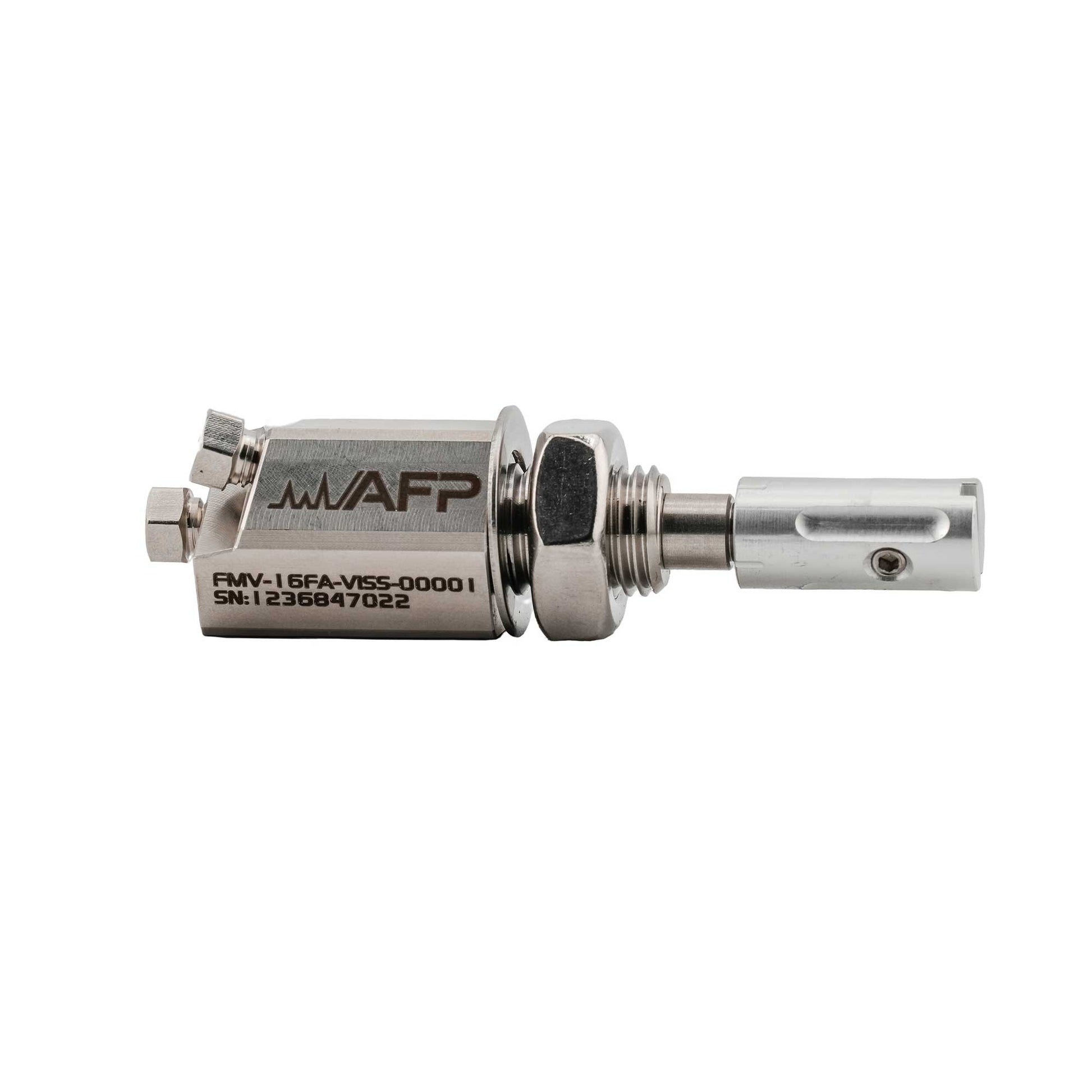

Flow Control | FMV-16FA-VISS-00001
Flow Metering Valve, 1/16'' fine adjustment, Viton, SS300, short nut, 10 µm frit, clear, lubricated (Needle Valve)
Regular price
$331.00 CAD
Regular price
Sale price
$331.00 CAD
Unit price
per
Couldn't load pickup availability

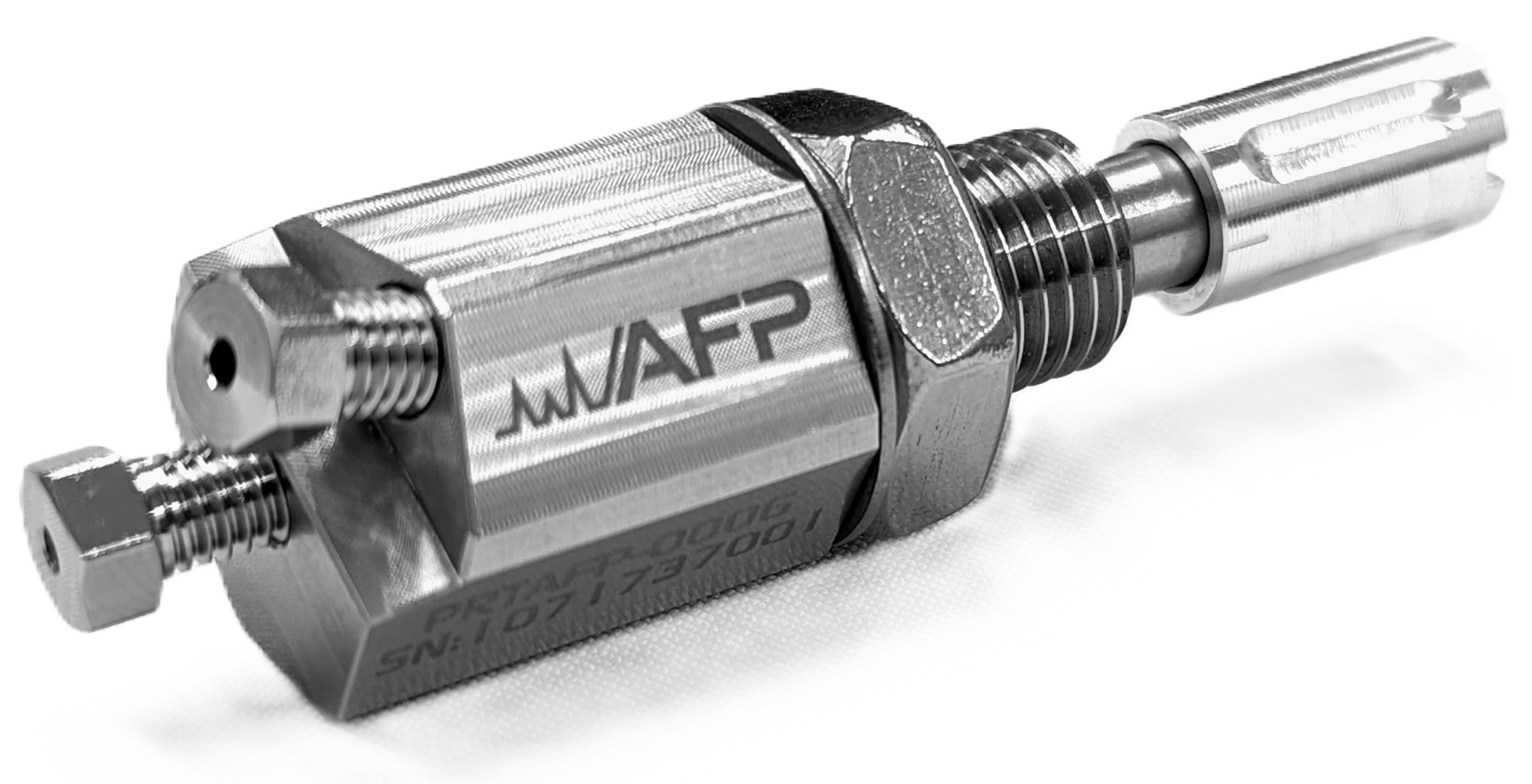

The AFP needle valve was designed to provide a high-resolution adjustment and sealing performance required in trace analysis.
Flow Metering Valve, 1/16'' fine adjustment, Viton, SS300, short nut, 10 µm frit, clear, lubricated (Needle Valve)
Key Features :
- Numbers of ports : 2
- Flow range: 2-175 cc @15 psi N2
- Port Connection : 1/16''
- Working pressure : 0-100PSI
- Max Temperature : 225°C
- Material : Stainless Steel 300 series
- O-Ring : Viton
- Timing mark : For visual support during manual adjustment.
- Groove in the knob : For better grip during manual adjustment
- Slot for screwdriver: For adjustment inside the instrument or limited access
- Improved adjustment mechanism: For robust and precise tuning
Downloadables
Valve Type
Dimensions & Weight
Length: 2.82 in [71.628 mm]
Width: 0.7 in [17.78 mm]
Height: 0.7 in [17.78 mm]
Width: 0.7 in [17.78 mm]
Height: 0.7 in [17.78 mm]
Specifications
Material: SS-316L
