ELDV2

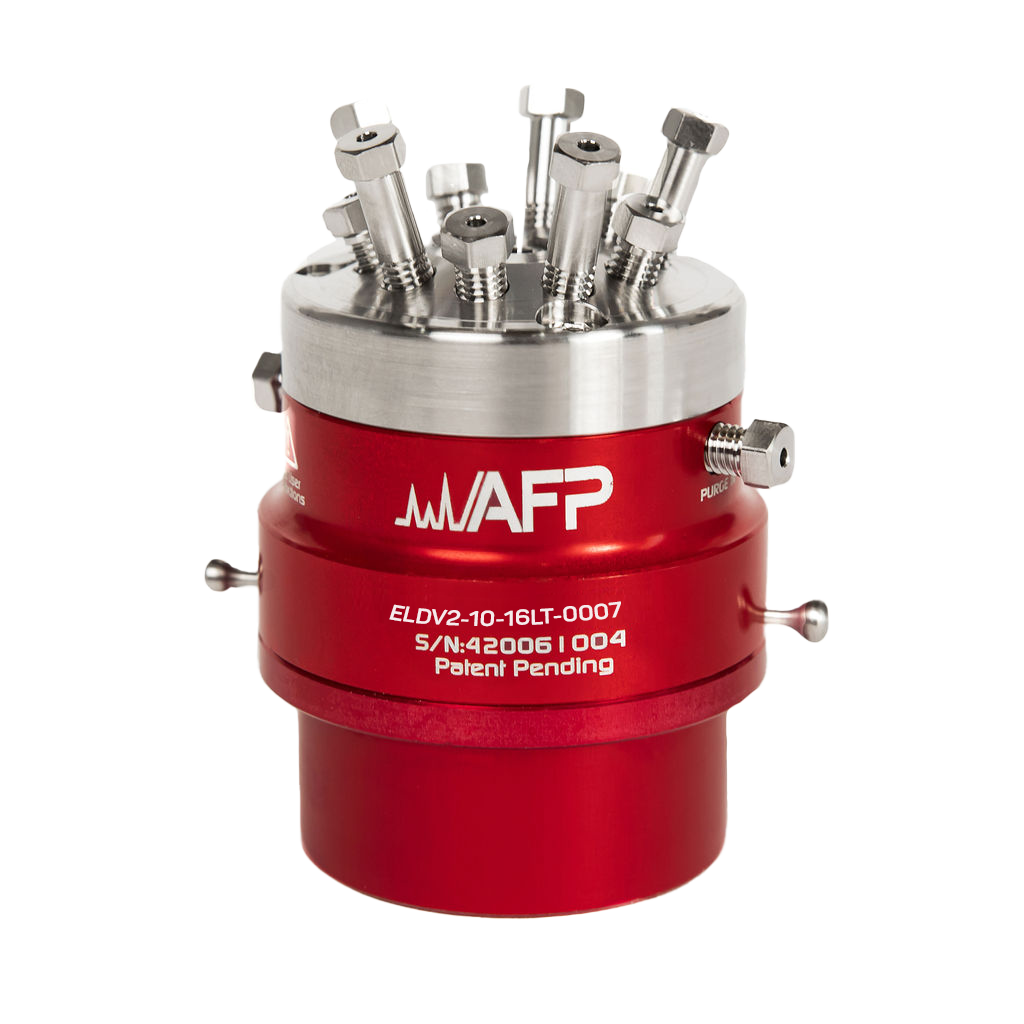

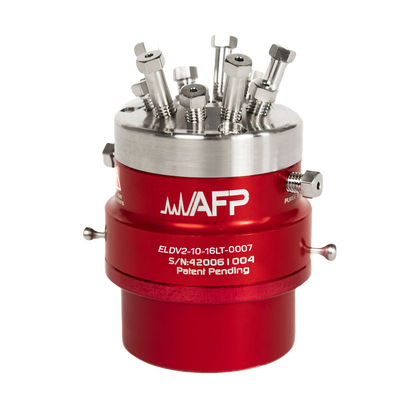

Built with precision and accuracy in mind, this 10-port 2-Position Injection & Switching Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance and certified leak tight up to 300 psi at 100°C, making it ideal for the Semiconductor industry.

All AFP purged diaphragm valves have purge features built directly into the valve which provides a barrier to prevent any inboard contamination and ensure sample integrity for trace analyses.

Key Features:

• Ports: 10
• Temperature: 100°C
• Pressure: 300 psi
• Material: SS-316L
• Port Size: 0.030”
• Coating: None
• Purge: Yes

Benefits Include:

• Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
• Ideal For: Fast switching and high duty cycle applications
• Accurate Results: Superior seal integrity prevents inboard leaks

• Lower Cost of Ownership: Built in purge features, valve does not require an external purge box
• Higher Quality: Every valve is leak tested before shipping at no additional cost
