Name: CH-100027 - GC Column 007-225, 15 m x 0.25 mm ID, 0.25 µm Film
Brand: afpproducts
SKU: CH-100027
Price: 896.0 CAD
Availability: InStock

Home / Consumables / Capillary Columns / CH-100027

1 1

Capillary Columns | CH-100027

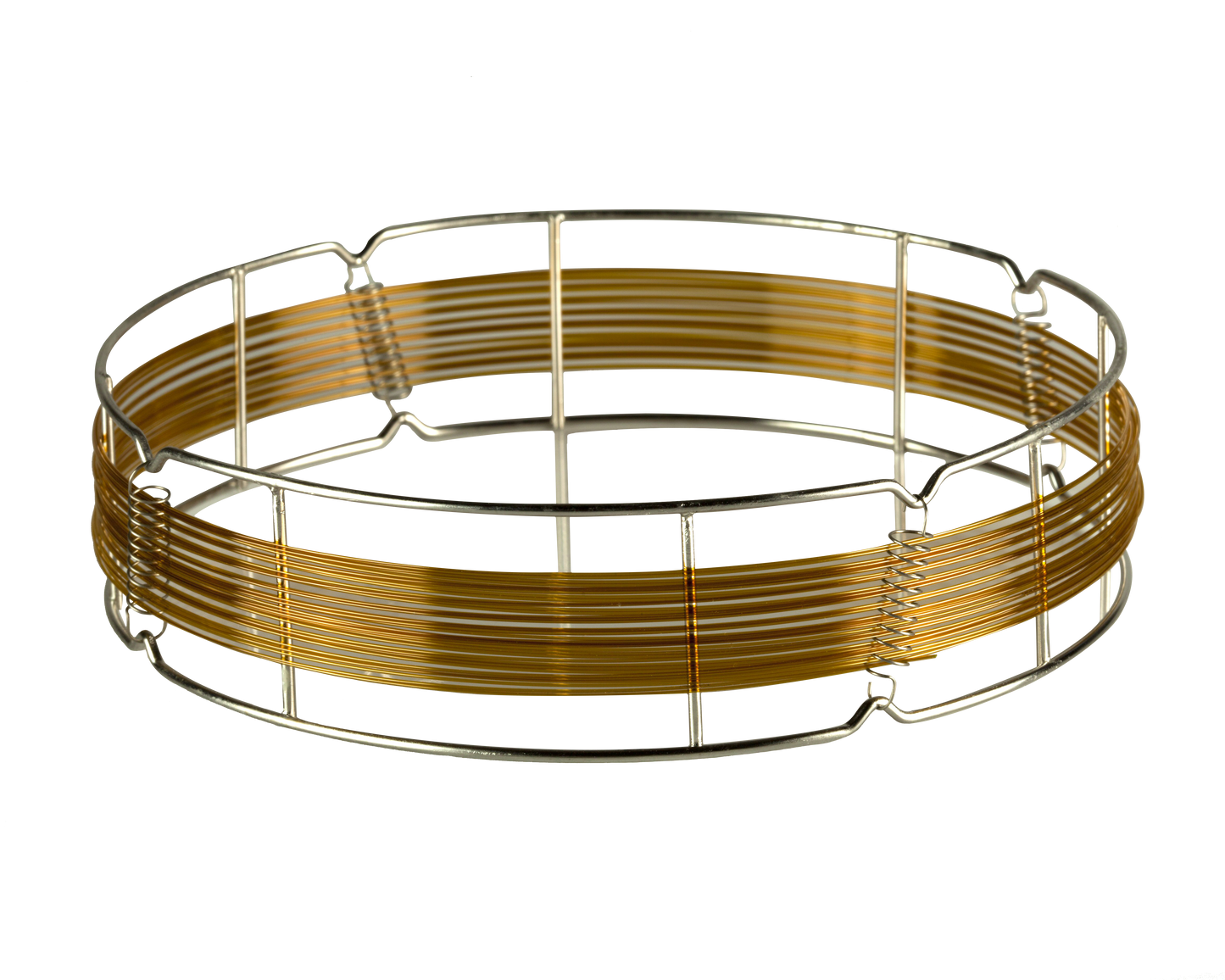

GC Column 007-225, 15 m x 0.25 mm ID, 0.25 µm Film

$896.00 CAD

Sale Sold out

The non-polar 007-1 dimethylpolysiloxane phase, which separates compounds according to boiling point, is probably the most frequently used phase type in GC. Bonding and crosslinking this general purpose GC phase increases the resistance to degradation by rinsing, large solvent injections and the deposition of non-volatiles. The 007-1 phase offers excellent efficiency and thermal stability. In addition, this non-polar phase is less susceptible to oxidation and hydrolysis than phases incorporating more polar functional groups.

Bonded and crosslinked
Moderately polar
Comparable to OV-225
Similar phases: DB-225, Rtx -225, AT-225, SP-2300, BP-225, CPSil-43CB
USP Phase Specification: G19

Product variants

Quantity

Downloadables

Reference Guide

Specifications

Style: PHAT™
Type: Capillary
Specification: 50% Cyanopropylphenyl / 50% Methylpolysiloxane
Film Thickness: 0.25 μm
Length: 15 m
Brand: Quadrex
Inner Diameter: 0.25 mm
Mfg. No.: 007-225-15-0.25F
Similar to Ohio Valley OV-225

General Area of Use

Carbohydrates, alditol acetates, FAMEs

007-225 is the designation for a 50% cyanopropylphenyl methylpolysiloxane. This phase possesses both permanent dipole interactions (nitrile) as well as induced dipole (phenyl) and dispersion interactions. It has unique selectivity for derivitized compounds such as fatty acids and carbohydrates. Non-volatile residues can be rinsed from the column to restore column performance.
